XSCAN C series

Categories ,
Get A Quote



Description

Application field

Electronic components, Battery, Diecasting, Automotive parts, etc

Features

  • Focus size: 4μm focus open type tube
  • Tube power: 225kV (280W), 300kV (280W)
  • High quality resolution 5″, 8″, 12″, 16″ FPD (Flat Panel Detector)
  • Navigation user interface/ Auto teaching
  • Various measuring tool software
  • Fast speed for CT & 3D function process

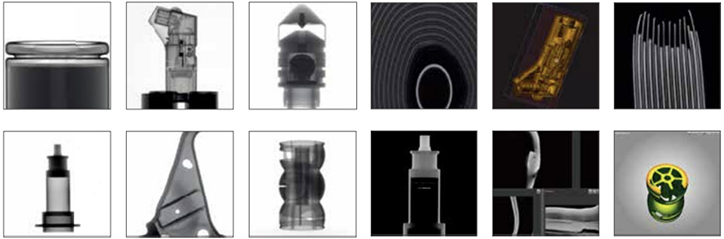

    • X-ray exam image

    ① 2D/3D Hybrid Inspection System with Automation Technology
    ② Precise results using high-speed OCT technology
    ③ Built for user convenience
    – S/W, Table Size, etc. can be customized according to users and applications.



    Additiional Information

    XSCAN-8225(BCT) / 8225(CT) XSCAN-8300(CT)
    X-RAY Tube 225KV/280W 300KV/280W
    Tube type/Focal spot< Open Type 4μm(Detecability 2μm)
    X-ray Detector 5″ or 8″ or 12″ or 16″ Flat Panel Detector(FPD)
    Inspection Area Ø60 x Ø200 (H) / Ø500 x 5500mm (H) Ø500 x Ø500mm (H)
    Axis control Basic 4 Axis:X,Y,Z,R Basic 5 Axis:X,Y,Z,T,R
    Dimension 1833 x 1090 x 2030mm 2086 x 1600 x 1850mm 2086 x 1600 x 1850mm
    Weight 4500kg 5000kg 7000kg
    Utility AC 220V, Single phase, 50/60Hz
    Application Electronic components, Battery, Diecasting, Autimotive parts, etc
