Next-Generation X-Ray Inspection
Absolute Safety, Unmatched Accuracy

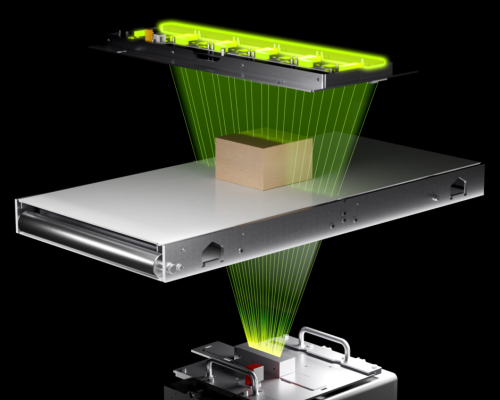

The Core Innovation: Low-Energy "Soft X-Ray" Technology
Protect your brand, ensure regulatory compliance, and eliminate high-density contaminants with the RAYCON EX2 the benchmark in soft X-ray food inspection. Unlike traditional high-energy X-ray systems that require heavy shielding and frequent tube replacements, the RAYCON EX2 utilizes an ultra-efficient 100 W low-energy (soft X-ray) generator.
Enhanced Foreign Body Contrast
Soft X-rays maximize the absorption contrast between low-density organic food products and high-density foreign bodies, making subtle contaminants far easier to identify.
- Operator Health & Safety:
Radiation leakage is reduced to <0.1 μSv/h —well below global regulatory thresholds.
No Bureaucratic Overhead:
Because radiation levels are so minimal, plant managers can bypass lengthy radiation logbooks, complex local permitting, and expensive operator radiation tracking badges.
Precision & Conformity
Detects magnetic and non-magnetic metals, stainless steel (0.6mm+), glass fragments, stones, ceramics, and high-density plastics.
Advanced software algorithms (RAYCON D+) adjust dynamically to product effect variations, eliminating false positives caused by changes in product temperature, moisture, or salt content.
Fully complies with strict retail and global food standards, including IFS, BRCGS, SQF, and FSSC 22000.
Safety for People & Product
Gentle on food products with zero impact on taste, shelf life, nutritional value, or organic certification.

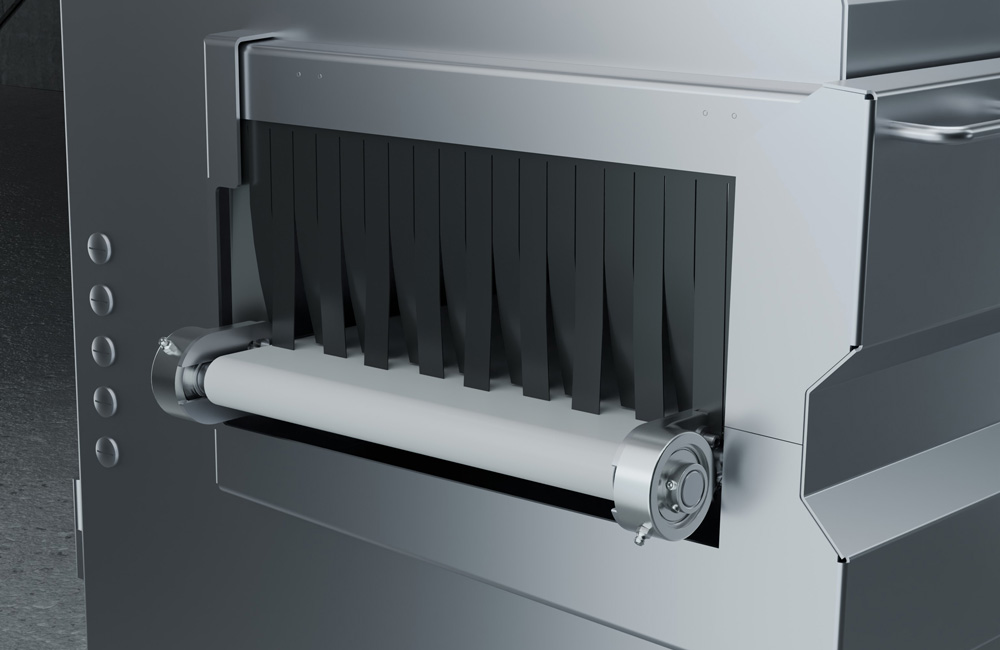

Complete physical radiation safety designed into the housing, featuring integrated curtain shields and emergency interlocks.
Comprehensive Lifetime Service
- Sesotec Remote Service: Instant diagnostics via secure online connection to minimize machine downtime.
- Dedicated spare parts availability and structured maintenance agreements for long-term operational peace of mind.
Hygienic Design & Rapid Cleaning
Built entirely out of high-grade, open-structure stainless steel to prevent organic accumulation.
IP65 protection rating in the conveyor area allows direct, high-pressure washdowns.

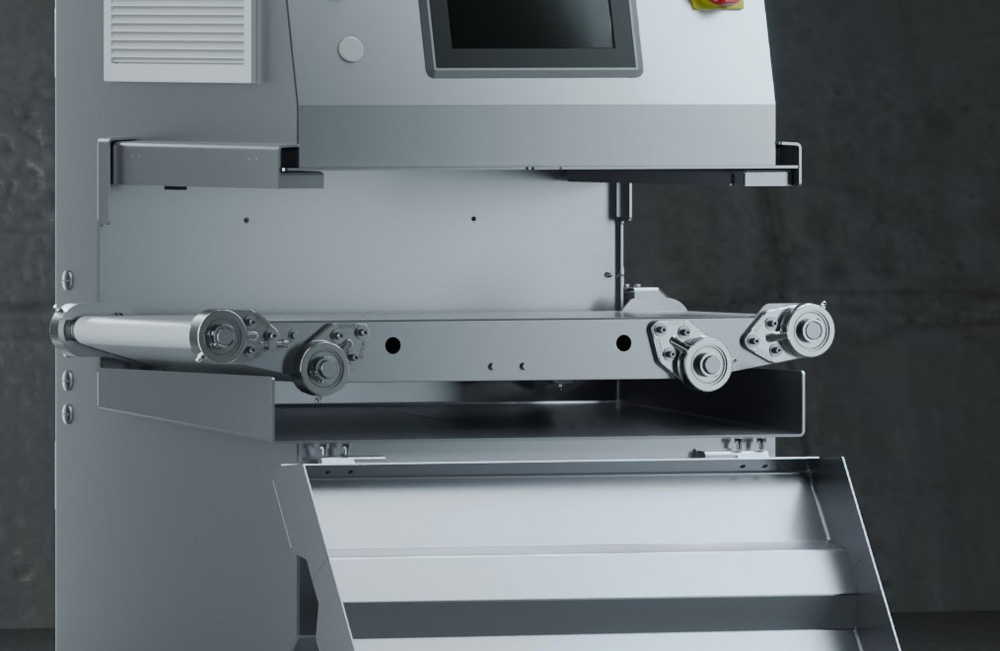

Tool-Less Belt Disassembly: Quick-release mechanism enables operators to remove belts and guide rails in seconds for rapid sanitation, minimizing line downtime.
Simple & Intuitive Operation

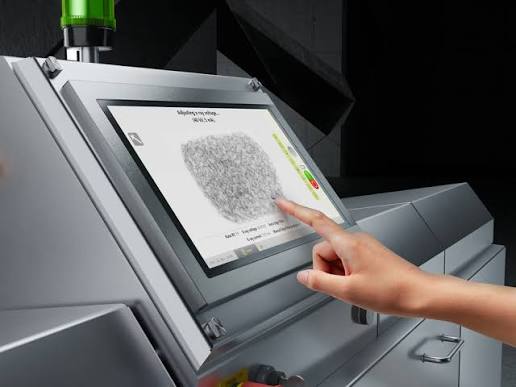

15-inch Touchscreen Interface: Clear visual representation of product images and detected foreign objects.
Auto-Learn Function: Setup new products in under 2 minutes. The system automatically learns product density profiles without requiring an image processing engineer.
Multi-Product Memory: Store hundreds of preset product profiles for instant line changes.
Maximum Operational Efficiency
- High-speed line processing up to 1.4m/s, keeping up with ultra-fast production lines (up to 1,000 items/minute).
- Modular design allows seamless fitting into existing transport lines or packaging systems.
Uncompromising Detection Capabilities
- Metals, Glass, Stones & Ceramics:
Reliably detects all foreign bodies with a density significantly higher than the food product (such as sausage, cheese, and meat).
Difficult-to-Detect Materials:
High-resolution detectors and sophisticated software filters (RAYCON D+) successfully uncover bones, rubber, Teflon, and PVC.
Beyond Foreign Bodies:

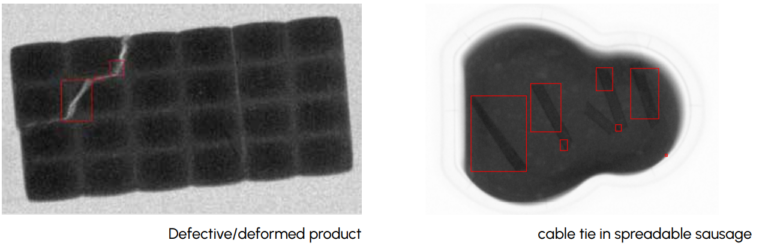

Performs automated checks for missing, broken, or deformed products, as well as weight estimation and clip-detection functions.
Software, Data Integrity & Audit Readiness
- Automated Audit Routines: Guided step-by-step test routines ensure quality managers verify CCP accuracy at required shifts.
- Tamper-Proof Logging: Every reject, test result, and parameter change is recorded with digital signatures in encrypted PDF logs for easy audit presentation.
- Industry 4.0 Connectivity: Supports OPC UA protocols, Ethernet communication, and integration with Sesotec Insight.NET and INTERLINK modules for centralized factory monitoring.
Technical Specifications Table
Feature / Metric | Technical Specification |
X-Ray Generator | Low-energy 100 W (Soft X-Ray) |
Detector Resolution | High-definition 0.4 mm resolution |
Detection Sensitivity | Stainless Steel ≥0.6 mm , Glass/Stone ≥2.0 mm |
Maximum Belt Speed | Up to 1.4m/s |
Throughput Capacity | Up to 1,000 packages per minute |
Radiation Protection | <0.1 μSv/h outside machine housing |
Protection Rating | IP65 (Conveyor Zone) |
Operational Temp | 0°C to +40°C |
Industries We Serve
Meat & Poultry
Dairy
Bakery & Snacks
Confectionery
Ready Meals
Seafood
Frozen Food
Testing Service
Raycon EX2
While the RAYCON EX2’s capabilities are world-class, the detectability of foreign bodies ultimately depends on your specific product’s density. Don’t guess—know for sure. We offer a free product test with your actual products to provide you with a meaningful basis for your decision-making. This test will demonstrate how our system’s high-resolution detector and sophisticated software can reliably detect contaminants like metal, glass, ceramics, and even low-density items such as bones and rubber in your product. See the system’s efficiency firsthand, which is capable of inspecting up to 1000 products per minute. Schedule your free test today to confirm the RAYCON EX2’s superior performance and gain peace of mind for your production line.
Products
Ready to ensure the highest standard of product safety and conformity? The RAYCON EX2 is the entry-level model of intelligent X-ray inspection systems, designed for packaged products. Built by Sesotec , the RAYCON EX2 offers reliable detection of a wide array of metallic and non-metallic foreign objects and product defects. From metals, glass, ceramics, and stones to difficult-to-find contaminants like bones, rubber, and PVC, the RAYCON EX2 provides precise inspection that helps your business comply with crucial food industry guidelines like IFS, BRC, and FSSC 22000. With a detection accuracy of 0.6 mm for stainless steel—better than the 0.8 mm required by IFS—you can achieve optimal product integrity and reliable protection against complaints and recalls.
