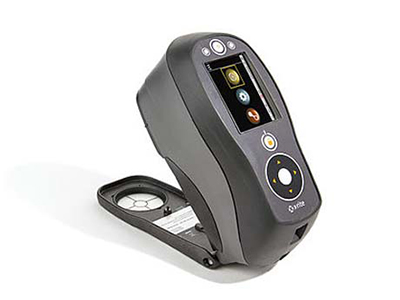

Ci6x Series Portable Spectrophotometers

Description

Improving Color Management at Every Link of the Supply Chain

The Ci6x family of handheld spectrophotometers — Ci60, Ci62, Ci64 & Ci64UV is a performance-driven solution for managing color at any stage of production, and gives manufacturers a whole new level of confidence in their color data, regardless of where or when the measurements are collected.

The Ci6x Series creates opportunities to develop a consistent color monitoring program, efficiently manage process quality control, and reduce operating costs.

A Versatile Package for a Wide Range of Color Applications
The many options within the product family give operations of all sizes the ability to build in a stable measurement system that delivers repeatable performance and increased product yield. This makes the Ci6x Series a reliable solution for a wide range of industries and applications:

Commercial Coatings: The need to meet specific color codes and regulations requires repeatable color measurement. The Ci6x Series provides the consistency demanded to ensure batch-to-batch color conformity.

Plastics: Batch consistency—from raw material through finished product—often varies depending on material supplier and process conditions. The Ci6x Series can monitor the color impact of shifts in process variables, while X-Rite application software storing color data that can be shared among the supply network to ensure color accuracy.

Automotive: Whether OEM interior, aftermarket parts, or second- and third-tier supplier components, color accuracy is an absolute must. The Ci6x system allows manufacturers at every level to achieve consistent readings. The ability to simultaneously measure SCI/SCE further enhances the quality control process.

Textiles: While materials and fabrics may appear similar at first glance, those that contain optical brightening agents (OBA) may result in a much different look under varied lighting conditions. Available calibrated UV enhanced illumination controls the UV/visible balance, enabling long-term, consistent measurement of optically bright samples.

Home Furnishings: Different materials—wood, paint, plastic, metal, fabric—and a wide variety of colors, make repeatable color conformance critical. The Ci6x family is able to read a wide range of materials and provide a benchmark measurement that can be used at each step of the production or assembly process.

Specification
Illumination: 45°
Aspecular Viewing: 15°, 25°, 45°, 75°, 110°
Angular Accuracy: ±0.15° Fiber Optic pick up coupled with DRS technology
Measuring Area: Approx. 12 mm (.5″)
Light Source: Gas filled tungsten lamp
Lamp Life: 750,000 measurements, typical
Spectral Range: 400nm – 700nm
Spectral Interval: 10nm (31 measured points)
Measurement Range: 0 – 400%
Colorimetric Illuminates A, C, D50, D65, F2, F7, F11 and F12
Colorimetric Standard Observers: 2° & 10°
Colorimetric Scales: L*a*b*, L*C*h°, ∆E*, ∆ECMC, ∆E DIN6175, ∆E2000
Effect Parameters: xDNA, Flop Index
Measurement Time: Approx. 2 seconds
Reproducibility: 0.18 ΔE* avg on reference Series II BCRA tile set
